Steel Wire Ropes

Stainless Steel Wire Rope Range

This product range follows the 2026 stainless steel wire rope brochure. It covers wire, rope and finished stay products in AISI 304 (06Cr19Ni10) and AISI 316 (06Cr17Ni12Mo2), with product data organized by maneuvering, protective, traction, construction and plastic coated wire ropes.

Our Wire Rope Products

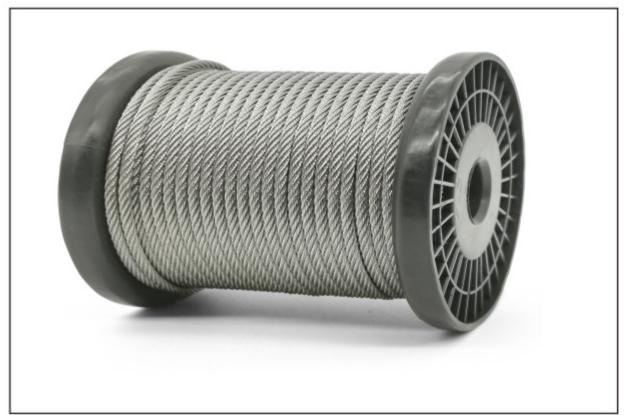

Stainless steel wire rope on spool
Maneuvering Wire Rope

Brochure-listed stainless wire rope for maneuvering use, with AISI 304 and AISI 316 strength data.

Structures: 1x7, 1x19
Diameter: 0.3-6.0 mm
Materials: AISI 304 / AISI 316
Request Specifications
Close-up stainless steel wire rope detail
Protective Wire Rope

Stainless protective rope series with 7x7 and 7x19 constructions and tabulated breaking load values.

Structures: 7x7 (6x7+IWS), 7x19 (6x19+IWS)
Diameter: 0.8-20 mm
Materials: AISI 304 / AISI 316
Request Specifications
Stainless steel wire rope production line
Traction Rope

AISI 304 traction rope group with multiple 6-strand and 8-strand IWR constructions.

Structures: 6x19S/W/26WS/31WS+IWR, 8x19S/W/26WS/31WS+IWR
Diameter: 6-32 mm
Material: AISI 304
Request Specifications
Stainless steel wire rope construction application
Construction Wire Rope

Construction-use stainless rope group with rotation-resistant and high-strength structure options.

Structures: 1x19, 1x37, 19x7, 35Wx7
Diameter: 8-24 mm
Material: AISI 304
Request Specifications
Finished stainless steel wire rope stays
Plastic Coated Steel Wire Rope

Coated stainless rope series with clear PVC as the regular coating and optional coating materials by request.

Structures: 1x7, 1x19, 7x7, 7x19
Coated OD: 0.8-16 mm
Coating: PVC, Nylon, PTFE, PE or PU
Request Specifications

Brochure Applications

Safety Protection

Safety fence, safety net and other protection systems shown in the brochure application section.

Engineering & Construction

Construction project, facility pull and engineering machinery uses listed in the source brochure.

Automotive & Machinery

Automotive, machinery, marine, new energy and medical fields are included in the company profile.
